Power Switch Channels
AMXR

Power Switch Channels (AMXR)
Universal Digitally Controlled Analog Switches/Multiplexers

Currently in development — now avaliable for pre-order

Power switch channels (19" plug-in modules) for modular switch system AMXR

General Technical Data for all Power Switch Channels

Characteristics

  • Digitally controlled, galvanically isolated electronic analog switches

Switches

  • Maximum operating voltages: up to 1.5 kV
  • High-voltage isolation (option H) available for all voltages
  • Polarity selection: slide switch(es) inside the module
  • Indicator: multicolor LED
    • Red = output positive, blue = output negative
    • Three-level switches only: green = output middle

Connectors

  • Control inputs (Sockets In): BNC sockets (LEMO optional)
    • Dual-level switches: 1 control input
    • Three-level switches: 2 control inputs
  • Input level: TTL
  • Switch terminals: SHV sockets, galvanically isolated
    • Dual-level switches: 3 switch terminals
    • Three-level switches: 4 switch terminals

General

  • 19" plug-in modules
  • Height: 3 U
  • Width: dependent on voltage and switch type, starting from 12 HP = 2 slots

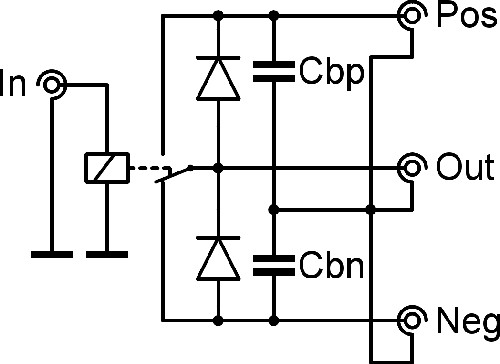

Equivalent circuit of one channel

  • Standard (dual-level switch):

    Equivalent Circuit
  • Option T (three-level switch): equivalent to two standard channels
  • Vneg ≤ Vout ≤ Vpos must be fulfilled at all times (even when the switch is deactivated)

See also

  • Individual power switch channels will be equivalent to channels of 19"-AMX
